Search across the table or filter individual specifications. Scroll sideways for additional columns.
| Web Images | Datasheet | ||||||||
|---|---|---|---|---|---|---|---|---|---|
WPANT40021-C1BProduct notesSpecification Notes (PDF): *Note: The above mentioned relevant performance metrics are recorded with the Antenna wrapped around (installed) an electric meter’s surface, | View image ↗ | Embedded / Internal | Wrap-Around | 698 – 960 MHz & 1710 – 2700 MHz | 3.5 dBi (900 MHz), 4 dBi (1900 MHz) Antenna Size: 4.66" X 1.81" X 0.010" | < 3:1 < 3:1 | — | 4.66’’ x 1.81’’ x 0.01’’ (118.5mm x 46mm x 0.25mm) | PDF ↗ |
WPANT40021-C2AProduct notesSpecification Notes (PDF): *Note: The above mentioned relevant performance metrics are recorded with the Antenna wrapped around (installed) an electric meter’s surface, | View image ↗ | Embedded / Internal | Wrap-Around | 698 – 960 MHz & 1710 – 2700 MHz | 3.5 dBi (900 MHz), 4 dBi (1900 MHz) Antenna Size: 4.66" X 1.81" X 0.010" | < 3:1 < 3:1 | — | 4.66’’ x 1.81’’ x 0.01’’ (118.5mm x 46mm x 0.25mm) | PDF ↗ |
WPANT10014Base / series identifierProduct notesSpecification Notes (PDF): *Note: The above mentioned relevant performance metrics are recorded with the Antenna installed on World Products Inc. Test Evaluation boards. | View image ↗ | Embedded / Internal | Micro-Hepta (Board Mount) | 824 – 960 MHz, 1567 – 1583 MHz, 1710 – 2170 MHz & 2.4 – 2.5 GHz | 2 dBi (890 MHz), 1 dBi (1575 MHz), 2.5 dBi (1940 MHz), 4 dBi (2.45 GHz) | < 2.5:1 < 3:1 < 2.5:1 < 3:1 | — | 1.5" x 0.67" x 0.5" | PDF ↗ |
| WPANT10045-C1A | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 824 – 894 MHz, 1850 – 1990 MHz & 2.4 – 2.5 GHz | 0.5 dBi (850 MHz), 2 dBi (1900 MHz) & 2 dBi (2.45 GHz) | < 2:1 < 2:1 < 2:1 | — | 84.6mm x 10.2mm x 1.6mm | PDF ↗ |
| WPANT10009-S1C | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 824 – 960 MHz & 1710 – 2170 MHz | 2 dBi (915 MHz) & 3 dBi (1900 MHz) | < 2:1 < 2.5:1 | — | 1.7" x 0.8" x 0.2" | PDF ↗ |
| WPANT10009-S2B | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 824 – 960 MHz & 1710 – 2170 MHz | 2 dBi (915 MHz) & 3 dBi (1900 MHz) | < 2:1 < 2.5:1 | — | 1.7" x 0.8" x 0.2" | PDF ↗ |
| WPANT10009-S3A | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 824 – 960 MHz & 1710 – 2170 MHz | 2 dBi (915 MHz) & 3 dBi (1900 MHz) | < 2:1 < 2.5:1 | — | 1.7" x 0.8" x 0.2" | PDF ↗ |
| WPANT10009-S4A | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 824 – 960 MHz & 1710 – 2170 MHz | 2 dBi (915 MHz) & 3 dBi (1900 MHz) | < 2:1 < 2.5:1 | — | 1.7" x 0.8" x 0.2" | PDF ↗ |
| WPANT10009-S5A | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 824 – 960 MHz & 1710 – 2170 MHz | 2 dBi (915 MHz) & 3 dBi (1900 MHz) | < 2:1 < 2.5:1 | — | 1.7" x 0.8" x 0.2" | PDF ↗ |
| WPANT10010-S1A | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 2.4 – 2.5 GHz & 4.9 – 5.9 GHz | 4 dBi (2.4 GHz) & 3 dBi (4.9 GHz) | < 2:1 < 2.5:1 | — | 1.7" x 0.8" x 0.25" | PDF ↗ |
| WPANT10010-S2A | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 2.4 – 2.5 GHz & 4.9 – 5.9 GHz | 4 dBi (2.4 GHz) & 3 dBi (4.9 GHz) | < 2:1 < 2.5:1 | — | 1.7" x 0.8" x 0.25" | PDF ↗ |
| WPANT10010-S3A | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 2.4 – 2.5 GHz & 4.9 – 5.9 GHz | 4 dBi (2.4 GHz) & 3 dBi (4.9 GHz) | < 2:1 < 2.5:1 | — | 1.7" x 0.8" x 0.25" | PDF ↗ |
| WPANT10010-S4A | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 2.4 – 2.5 GHz & 4.9 – 5.9 GHz | 4 dBi (2.4 GHz) & 3 dBi (4.9 GHz) | < 2:1 < 2.5:1 | — | 1.7" x 0.8" x 0.25" | PDF ↗ |
| WPANT10011-S1B | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 900 – 930 MHz & 2.4 – 2.5 GHz | 2 dBi (915 MHz) & 3 dBi (2.4 GHz) | < 2:1 < 2:1 | — | 1.7" x 0.8" x 0.26" | PDF ↗ |
| WPANT10011-S2A | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 900 – 930 MHz & 2.4 – 2.5 GHz | 2 dBi (915 MHz) & 3 dBi (2.4 GHz) | < 2:1 < 2:1 | — | 1.7" x 0.8" x 0.26" | PDF ↗ |
| WPANT10057-S2A | View image ↗ | Embedded / Internal | Surface Mount MIMO | 2.4 – 2.5 GHz & 4.9 – 5.9 GHz | 1.5 dBi (2.45 GHz) & 1.5 dBi (5.4 GHz) | < 2:1 < 2.5:1 | — | 150mm x 3mm x 0.8mm | PDF ↗ |
| WPANT10065-S1A | View image ↗ | Embedded / Internal | Heat Stake or Surface Mount with Adhesive | 2.4 – 2.5 GHz & 13.56 MHz | 3 dBi (2.45 GHz) | < 2:1 N/A | IPX / Hirose equivalent (BT), Molex 2-pin (NFC) | 2.4" x 0.8" x 0.062" | PDF ↗ |
| WPANT10089-S1A | View image ↗ | Embedded / Internal | Surface Mount with Adhesive | 1567 – 1583 MHz & 2.4 – 2.5 GHz | 1.5 dBi (1575 MHz) & 2 dBi (2.45 GHz) | < 2:1 < 2:1 | — | 1.7" x 0.8" x 0.26" | PDF ↗ |
WPANT30201-S1BProduct notesSpecification Notes (PDF): Note: These performance metrics were recorded with the antenna mounted on to a customer supplied access-point chassis. | View image ↗ | Panel Mount | Panel Mount | 698 – 960 MHz & 1710 – 2700 MHz | 3 dBi (900 MHz), 4 dBi (1900 MHz) Radiation Pattern: Omni-Directional | < 2:1 < 2:1 | NMO - Type-N Male | 3.94" H x 1.65" Base Diameter | PDF ↗ |
| WPANT30202-S1A | View image ↗ | Panel Mount | Panel Mount | 698 – 960 MHz & 1710 – 2700 MHz | 2 dBi (900 MHz), 3 dBi (1900 MHz) Radiation Pattern: Omni-Directional | < 2:1 < 2:1 | Type-N Female | 3.35" H x 1.65" Base Diameter | PDF ↗ |
| WPANTDP081-S2C | View image ↗ | Panel Mount | Panel Mount | 850 – 960 MHz, 2.4 – 2.5 GHz & 5.4 – 5.8 GHz | 2 dBi (900 MHz), 4 dBi (2.45 GHz), 5.5 dBi (5.6 GHz) Radiation Pattern: Omni Directiona | < 2:1 < 2:1 < 2:1 | Straight SMA Male (3 count) | 5.5" H x 3.5" Base Diameter Standard Cables: RG316 (3 count) Standard Connectors: SMA Male (3 count) | PDF ↗ |
| WPANT30074-S1A | View image ↗ | Panel Mount | Panel Mount | 698 – 960 MHz, 1392 – 1435 MHz & 1710 – 2700 MHz | 2 dBi (850 MHz), 2 dBi (1413 MHz), 4 dBi (1850 & 2400 MHz) Radiation Pattern: Omni Directional | < 3:1 < 2.5:1 < 2.5:1 | SMA Male Lightning Protection: DC Ground for all frequency bands | 3.94" H x 5.3" Diameter of metal plate | PDF ↗ |
| WPANT30004-SB2 | View image ↗ | Panel Mount | Panel Mount / Glass Mount | 824 – 960 MHz & 1710 – 2170 MHz | 2 dBi (890 MHz), 3 dBi (1940 MHz) Radiation Pattern: Omni Directional | < 3:1 < 2.5:1 | SMA Male Lightning Protection: DC Ground for all frequency bands | 3.8" H x 3.9" Diameter of metal plate | PDF ↗ |
WPANT30100-S1AProduct notesSpecification Notes (PDF): *Note: RF Performance Metrics recorded with Antenna placed on top of a Metal Box. | View image ↗ | Panel Mount | Panel Mount | 824 – 960 MHz & 1710 – 2700 MHz | 3.2 dBi (850 MHz), 4.0 dBi (1900 MHz) Radiation Pattern: Omni Directional | < 3:1 < 3:1 | SMA Male Mount: Threaded Metal Mount with 2 flat edges | 3.2" x 1.2" x 1.2" | PDF ↗ |
WPANT30002-SBProduct notesSpecification Notes (PDF): *Note: RF Performance Metrics recorded with Antenna placed on top of a Metal Box. | View image ↗ | Panel Mount | Panel Mount | 824 – 960 MHz & 1710 – 2170 MHz | 2 dBi (890 MHz), 4 dBi (1940 MHz) Radiation Pattern: Omni Directional | < 2.5:1 < 2.5:1 | Type-N Female Jack with a Flat end | 3.2" x 1.2" x 1.2" | PDF ↗ |
WPANT30003-CCProduct notesSpecification Notes (PDF): *Note: RF Performance Metrics recorded with Antenna placed on top of a Metal Box. | View image ↗ | Panel Mount | Panel Mount | 902 – 928 MHz & 2.4 – 2.5 GHz | 2 dBi (915 MHz), 3 dBi (2.45 GHz) Radiation Pattern: Omni Directional | < 2:1 < 2:1 | Type-N Female Jack with a Flat end | 3" x 1.2" x 1.2" | PDF ↗ |
WPANT30142-S1AProduct notesSpecification Notes (PDF): *Note: RF performance metrics recorded with antenna placed on top of a metal box. | View image ↗ | Panel Mount | Rugged Panel Mount (Vandal Resistant) | 824 – 960 MHz & 1710 – 2170 MHz | 2 dBi (900 MHz), 4 dBi (1900 MHz) Radiation Pattern: Near Omni-Directional | < 2.5:1 < 2.5:1 | Type-N Female with 2 flat edges Different cable and connector styles can be accommodated. | 3.5" H x 2.9" Base Diameter | PDF ↗ |
| WPANT30060-S1A | View image ↗ | Panel Mount | Panel Mount | 824 – 960 MHz, 1567 – 1583 MHz, 1710 – 2170 MHz & 4.9 – 5.9 GHz | 2.5 dBi (900 MHz), 27 dB (1575 MHz), 3 dBi (1900 MHz) | < 3:1 < 2:1 < 2.5:1 < 2:1 | Straight SMA male (1575 MHz) | 4.8" (Base Diameter) x 3.74" H Standard Cables: LMR200 (850/900/1900/2100 MHz), RG316 (1575 MHz), LMR200 (5 GHz) Standard Connectors: Right angle SMA male (850/900/1900/2100 MHz), Straight SMA male (1575 MHz), Type-N female (5 GHz) Lightning Protection: DC Ground | PDF ↗ |
| WPANT30061-S1A | View image ↗ | Panel Mount | Panel Mount | 1567 – 1583 MHz & 4.9 – 5.9 GHz | 27 dB (1575 MHz) | < 2:1 < 2:1 | Straight SMA male (1575 MHz), Type-N female (5 GHz) Lightning Protection: DC Ground | 3.85" (Base Diameter) x 3" (Height) Standard Cables: RG316 (1575 MHz), LMR200 (5 GHz) | PDF ↗ |
| WPANT30013-SB | View image ↗ | Panel Mount | Glass Mount | 824 – 960 MHz, 1567 – 1583 MHz & 1710 – 2170 MHz | 2.5 dBi (890 MHz), 3 dBi (1575 MHz) & 3.5 dBi (1940 MHz) | < 2:1 < 2:1 < 2:1 | GPS: SMA Male / GSM: F ME Female | 3.1" Diameter x 0.6" H | PDF ↗ |
WPANT30026-SEProduct notesSpecification Notes (PDF): *Note: These performance metrics were recorded with the antenna placed on top of a WP Test Fixture (Metal plate / | View image ↗ | Panel Mount | Panel Mount | 902 – 928 MHz & 2.4 – 2.5 GHz | 4 dBi (915 MHz), 3.5 dBi (2.45 GHz | — | Right angle SMA Male Lightning Protection: DC Ground for all frequency bands | 5.5" Base Diameter x 1.32" H | PDF ↗ |
| WPANT30070-S1A | View image ↗ | Panel Mount | Panel Mount | 824 – 960 MHz & 1710 – 2170 MHz | 2 dBi (915 MHz) & 3.5 dBi (1900 MHz) | < 3:1 < 3:1 | IPX / Hirose equivalent | 2" x 1.1" x 0.8" | PDF ↗ |
| WPANT30069-S1A | View image ↗ | Panel Mount | Panel Mount | 2.4 – 2.5 GHz & 4.9 – 5.9 GHz | 3 dBi (2.45 GHz), 4.5 dBi (5.5 GHz) | < 2:1 < 2:1 | IPX / Hirose equivalent | 1.5" (Height) x 1.3" (Base Diameter) | PDF ↗ |
| WPANT30169-S2B | View image ↗ | Panel Mount | Panel Mount | 2.4 – 2.5 GHz & 4.9 – 5.9 GHz | 3 dBi (2.45 GHz), 3.5 dBi (5.5 GHz) | < 2:1 < 2:1 | RP-SMA Male | 1.5" (Height) x 1.3" (Base Diameter) | PDF ↗ |
| WPANT30169-S3B | View image ↗ | Panel Mount | Panel Mount | 2.4 – 2.5 GHz & 4.9 – 5.9 GHz | 3 dBi (2.45 GHz), 3.5 dBi (5.5 GHz) | < 2:1 < 2:1 | RP-SMA Male | 1.5" (Height) x 1.3" (Base Diameter) | PDF ↗ |
| WPANT30128-S1A | View image ↗ | Panel Mount | Panel Mount | 860 – 960 MHz, 1560 – 1590 MHz & 2400 – 2500 MHz | 3 dBi (900 MHz), 1 dBi (1575 MHz), 2.5 dBi (2450 MHz) | < 2:1 < 2:1 < 2:1 | — | 2.36" x 2.36" x 2.36" Base, 1.8" H Standard Cables: RG178 Standard Connectors: SMA Male (2 connectors) Different cable and connector styles can be accommodated. | PDF ↗ |
| WPANTDP072-R1A | View image ↗ | Panel Mount | Panel Mount | 824 – 894 MHz, 1567 – 1583 MHz, 1710 – 1990 MHz, 2400 – 2500 MHz | 2 dBi (860 MHz), 28 dBi (1575 MHz), 2 dBi (1850 MHz), 3 dBi (2450 MHz) | — | SMA Male | 2.44" (Base Dia) x 0.43" (Height) | PDF ↗ |
| WPANTDP070-R1A | View image ↗ | Panel Mount | Panel Mount | 88 – 108 MHz, 824 – 960 MHz, 1567 – 1583 MHz, 1710 – 1990 MHz | 2 dBi (98 MHz), 2 dBi (900 MHz), 28 dBi (1575 MHz), 2 dBi (1850 MHz) | — | SMA Male | 3.6" (Height) x 2.44" (Base Dia) | PDF ↗ |
| WPANTDP069-R1A | View image ↗ | Panel Mount | Panel Mount | 88 – 108 MHz, 1575 – 1615 MHz | 10 dBi (98 MHz), 30 dBi (1595 MHz) | — | GPS: FAKRA / FM: DIN41585 | 15.1" (Length) x 1" (Base Width) Standard Cables: RG188 (FM), RG316 (GPS) Standard Connectors: DIN41585 (FM), FAKRA (GPS) . | PDF ↗ |
| WPANT30146-S1A | View image ↗ | Panel Mount | Rugged Panel Mount (Vandal Resistant) | 698 – 960 MHz & 1710 – 2700 MHz | 1.5 to 2.5 dBi Radiation Pattern: Near Omni-Directional | < 3:1 < 3:1 | SMA Male Different cable and connector styles can be accommodated. | 3.15" H x 5" Base Diameter | PDF ↗ |
| WPANT30129-S1B | View image ↗ | Panel Mount | Rugged Panel Mount (Vandal Resistant) | 860 – 960 MHz & 2400 – 2500 MHz | 2 dBi (900 MHz), 3 dBi (2400 MHz) Radiation Pattern: Omni-Directional | < 2:1 < 2:1 | SMA Male Plug Lightning Protection: DC Ground for all frequency bands Different cable and connector styles can be accommodated. | 8.5" x 2.76" x 1.42" | PDF ↗ |
| WPANT30136-S1A | View image ↗ | Panel Mount | Panel Mount | 824 – 960 MHz, 1567 – 1583 MHz, 1710 – 2170 MHz, 2.4 – 2.5 GHz & 4.9 – 5.9 GHz | 2.5 dBi (900 MHz), 27 dB (1575 MHz), 3 dBi (1900 MHz), 3 dBi (2.4 GHz), 4 dBi (5.4 GHz) | < 3:1 < 2.5:1 < 2:1 < 2:1 < 2:1 | — | 4.8" Base Diameter x 3.74" H Standard Cables: LMR200 Standard Connectors: SMA Male (3 connectors) Lightning Protection: DC Ground | PDF ↗ |
| WPANT30155-S1A | View image ↗ | Panel Mount | Rugged Panel Mount (Vandal Resistant) | 850 – 930 MHz, 1567 – 1583 MHz & 2400 – 2500 MHz | 2 dBi (900 MHz), 29.5 dBi (1575 MHz), 3 dBi (2450 MHz) Radiation Pattern: Near Omni-Directional | < 2:1 < 3:1 < 2:1 | — | 3.15" H x 5" Base Diameter Standard Cables: RG316 Standard Connectors: SMA Male (2 connectors) Different cable and connector styles can be accommodated. | PDF ↗ |
| WPANT30102-S1B | View image ↗ | MIMO | MIMO Body-Mount | 2.4 – 2.5 GHz | 2 dBi Each Element Size: 1.5" x 1.3" (Base diameter) | < 2:1 | Reverse Polarity Straight SMA Male | 1.5’’ Height** X 1.3’’ Base Dia (38mm X 32.3mm) | PDF ↗ |
| WPANT30152-S1A | View image ↗ | MIMO | MIMO Body-Mount | 2.4 – 2.5 GHz & 4.9 – 5.9 GHz | 2 dBi (2.4 GHz), 3 dBi (5.4 GHz) Each Element Size: 1.5" x 1.3" (Base diameter) | < 2:1 < 2:1 | — | — | PDF ↗ |
| WPANT30162-S1A | View image ↗ | MIMO | MIMO Body-Mount | 824 – 960 MHz & 1710 – 2170 MHz | 2 dBi (900 MHz), 3 dBi (1900 MHz) Each Element Size: 2" x 0.8" x 1.1" | < 3:1 < 3:1 | — | — | PDF ↗ |
WPANT30101-S1AProduct notesNotes: No datasheet link on this listing. Used the same series datasheet linked from another harvested category. | View image ↗ | MIMO | — | 902 – 928 MHz 2.4 – 2.5 GHz | 2 dBi 3 dBi | < 2:1 < 2:1 | Type-N Female Jack with a Flat edge; Plating Nickel + Chromium Alloy | 3.0’’ X 1.2’’ X 1.2’’ (76mm X 30mm X 30mm) | PDF ↗ |

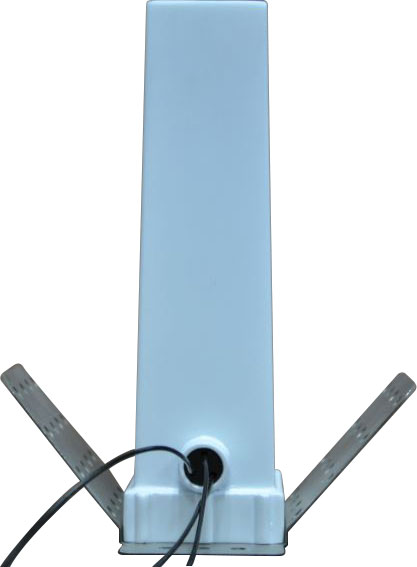

WPANTDP016Base / series identifierProduct notesNotes: No datasheet linked on the harvested pages. Webpage specifications only. | View image ↗ | MIMO | 3X3 MIMO Body Mount | 4.9 – 5.9 GHz For more specifications: please contact WP sales | — | — | — | — | Not supplied |

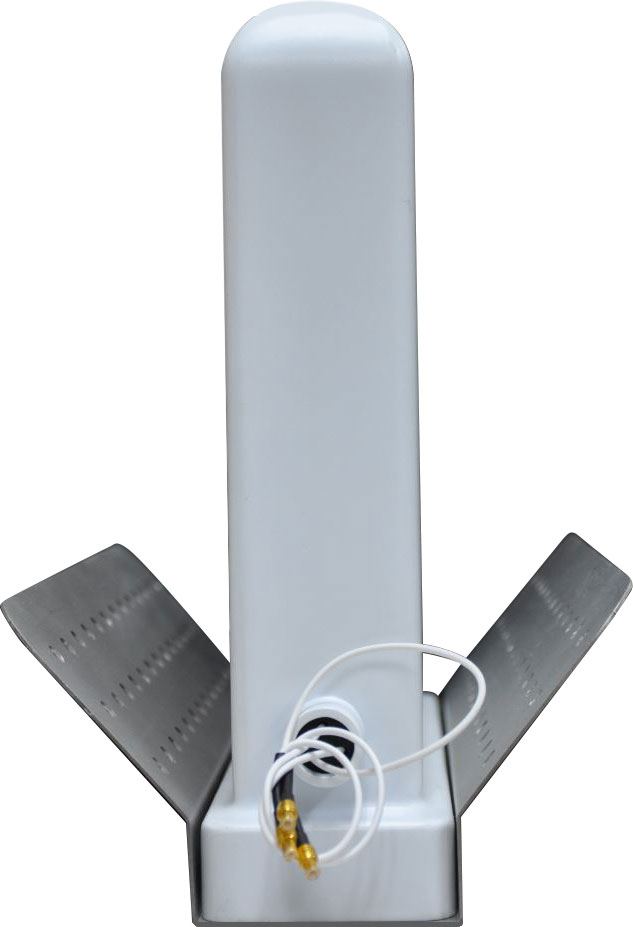

WPANTDP021Base / series identifierProduct notesNotes: No datasheet linked on the harvested pages. Webpage specifications only. | View image ↗ | MIMO | 3X3 MIMO Body Mount | 4.9 – 5.9 GHz For more specifications: please contact WP sales | — | — | — | — | Not supplied |
| WPANTDP015-S1A | View image ↗ | MIMO | 3X3 MIMO Body Mount | 4.9 – 5.9 GHz | 6 dBi | <2.5:1 | SMA Female Lightning Protection: DC Ground | 3.56" (Height) x 3.94" (Base diameter) | PDF ↗ |
| WPANTDP017-S1A | View image ↗ | MIMO | 3X3 MIMO Body Mount | 4.9 – 5.9 GHz | 4 dBi | <2.5:1 | SMA Female Lightning Protection: DC Ground | 3.8" x 1.82" x 1.85" | PDF ↗ |
| WPANTDP084-R1A | View image ↗ | MIMO | MIMO Panel Antenna | 2.3 – 2.7 GHz | 12 dBi Radiation Pattern: Directional | < 2:1 | MMCX Lightning Protection: DC Ground for all frequency bands | 8.0" x 8.0" x 0.9" | PDF ↗ |
| WPANTDP088-R1A | View image ↗ | MIMO | MIMO Panel Antenna | 2.5 – 2.7 GHz | 12 dBi Radiation Pattern: Directional | < 2:1 | Type-N Female Different connector requests can be accommodated. Lightning Protection: DC Ground for all frequency bands | 9.84" x 7.5" x 2.8" | PDF ↗ |
| WPANTDP089-R1A | View image ↗ | MIMO | 2X4 MIMO Panel Antenna | 2.5 – 2.7 GHz | 15 dBi Radiation Pattern: Directional | < 2:1 | Type-N Female Different connector requests can be accommodated. Lightning Protection: DC Ground for all frequency bands | 15.2" x 7.5" x 2.8" | PDF ↗ |
| WPANTDP085-R1A | View image ↗ | MIMO | MIMO Panel Antenna | 3.3 – 3.8 GHz | 14 dBi Radiation Pattern: Directional | < 2:1 | MMCX Lightning Protection: DC Ground for all frequency bands | 8.0" x 8.0" x 0.9" | PDF ↗ |
| WPANTDP086-R1A | View image ↗ | MIMO | MIMO Panel Antenna | 5.3 – 5.8 GHz | 13 dBi Radiation Pattern: Directional | < 2:1 | MMCX Lightning Protection: DC Ground for all frequency bands | 8.0" x 8.0" x 0.9" | PDF ↗ |
| WPANT30120-R1A | View image ↗ | MIMO | MIMO Pole Mount | 2.4 – 2.5 GHz & 5.15 – 5.85 GHz | 6 dBi (2.4 GHz), 6 dBi (5.4 GHz) Radiation Pattern: Omni-Directional | < 2:1 < 2:1 | — | 7" x 5.9" (Dia) Standard Cables: RG58 Standard Connectors: RP-SMA Female (2 connectors) | PDF ↗ |
| WPANT30121-R1A | View image ↗ | MIMO | MIMO Panel Pole Mount | 2.4 – 2.5 GHz & 5.15 – 5.85 GHz | 11 dBi (2.4 GHz), 12 dBi (5.4 GHz) Radiation Pattern: Directional | < 2:1 < 2:1 | — | 14.5" x 14.5" x 1.6" Standard Connectors: Type-N Female (6 connectors) Lightning Protection: DC Ground for all frequency bands | PDF ↗ |
| WPANT30119-R1A | View image ↗ | MIMO | MIMO Panel Pole Mount | 2.4 – 2.5 GHz & 5.15 – 5.85 GHz | 12 dBi (2.4 GHz), 14 dBi (5.4 GHz) Radiation Pattern: Directional | < 2:1 < 2:1 | — | 19.23" x 6.5" x 3.5" Standard Connectors: Type-N Female (4 connectors) Lightning Protection: DC Ground for all frequency bands | PDF ↗ |
No products match these filters. Try a shorter search or reset the filters.
— indicates a value not provided in the source table. Test conditions and units are included in the column headings. Open Product notes where shown for qualifications. Ordering templates and base identifiers require configuration before ordering. Datasheets were not supplied for 2 entries.
